How to design interfaces with Cursor in OpenDesign: Design Mode for visual edits on real code, Figma as the input, one pricing-page task from brief to reviewed file, and the limits to know before you start.
THREE STARTING POINTS FOR CURSOR
Pick Your Cursor Starting Point
THIS GUIDE · UI DESIGN
Build a Product Interface in Cursor
This guide covers a brief, references, design rules, and a reviewed HTML artifact.
Read this guide SETUPSet Up Cursor From Zero
The full route from a clean install to a Cursor that builds, previews, and checks UI against your design system.
Go to setup COMPARISONCompare Cursor With Other Agents
How Cursor compares to Codex and Claude Code for design work, and when to pick a different workflow.
See the comparisonOn This Page Example
One Complete Cursor Design Task
One Cursor Design Task: Brief to Interface
This example traces one task from the brief and constraints you hand over, through the artifact Cursor returns, to the checks you still run before calling it finished. The interface below is an illustrative example built for this page, not a recorded Cursor run.
1Design Brief and Constraints
BriefDesign a pricing page for a developer tool with three plans and a monthly / yearly toggle. Make the middle plan the recommended one and keep the comparison scannable. Desktop and phone.
- Design systemExisting app tokens; Albert Sans; a single green accent
- Breakpoints1440px desktop and 390px mobile, no horizontal scroll
- InteractionsBilling toggle, plan CTA states, FAQ links, and keyboard focus on the toggle
- OutputA single self-contained HTML file with stable
data-od-idhooks
2Who Does What: You, Cursor, and OpenDesign
- You
Write the brief, choose the design system, and define the acceptance criteria.
- Cursor
Plans the layout, writes the HTML, CSS, and JavaScript, then revises on request.
- OpenDesign
Supplies the design system and skill, renders the preview, and saves each version as a file in the project.
- Review
Before handoff, check visual hierarchy, spacing on the 8px grid, both breakpoints, and every interaction.

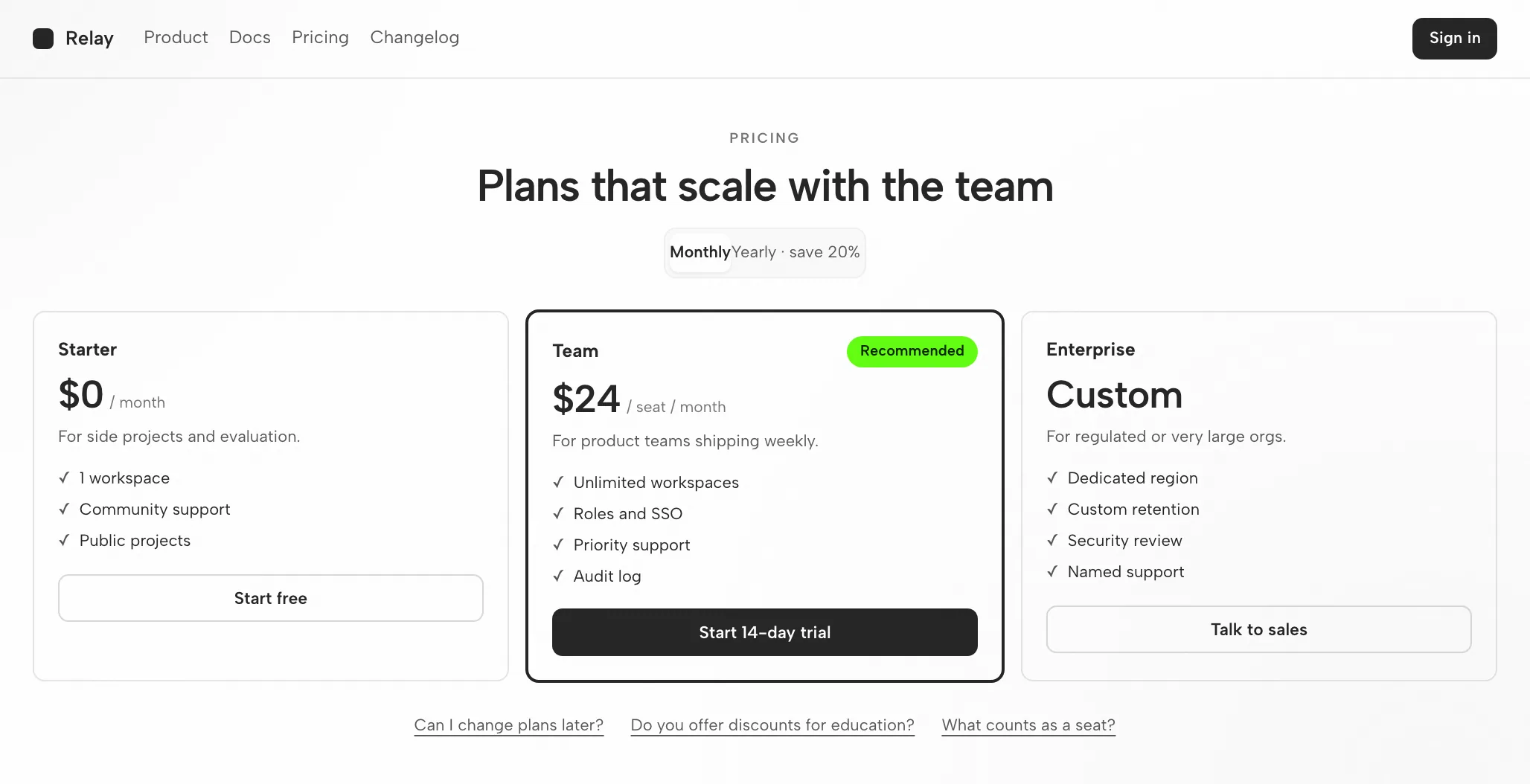

3Cursor Artifact: Pricing Page at 1440px and 390px
4Review Before Handoff
Layout
Grid and Spacing
Three equal columns on the 8px grid; the recommended plan gets emphasis from its border, not its size.
Hierarchy
Visual Hierarchy
Price first, then plan name, then features; the accent appears on one badge and one primary button.
Responsive
Mobile Layout
On mobile, plans stack with the recommended plan first; the toggle remains reachable at the top.
Interaction
Interaction Checks
Toggle the billing switch, tab through each CTA, and open one FAQ link.
Fit
Where Cursor Fits — and Where It Doesn't
Cursor Fits When
- Design Mode. Click, draw, or describe a UI change by voice, and Cursor edits the source — visual editing grounded in real code. If you are deciding whether Cursor should be replaced or paired with a design workspace, read the OpenDesign vs Cursor comparison.
- Figma → code. Figma MCP servers supply real layout and tokens to Cursor, so it builds from the design rather than a screenshot. The OpenDesign vs Figma comparison explains the canvas-to-repo ownership boundary.
- Bidirectional Figma. Some MCP servers let Cursor both read and modify Figma designs programmatically, not merely consume them.
- Design-to-code loop. The usual pattern: draft in a visual tool, bring it into Cursor, then refine and extend with the agent.
Choose Another Workflow When
- You need editable vector files. The artifact is HTML, not an editable design document. For an asset format that requires vectors, look to a separate vector workflow.
- You have no reference and no constraints. Without a design system or examples, output drifts toward a generic look; write the brief before you start.
- You do not have the credential this agent needs. Required: a Cursor account (which uses your own provider keys). OpenDesign neither provides nor proxies credentials.
- Your team works in Claude Code or Antigravity. Those agents have their own pages; the workspace is shared, while setup differs. See related agents.
Compatibility
Cursor Requirements Before You Start
This page treats Cursor as an agent attached to the OpenDesign desktop app; it does not cover every Cursor feature. Published references checked on 6 September 2026.
Tool ScopeCursor, by Cursor
Cursor is a VS Code–based, AI-first code editor with an embedded agent that edits across the project. Here the subject is interface design with that Cursor agent through OpenDesign, not Cursor’s own UI. OpenDesign’s setup notes list the available agents.
Accounts and AuthenticationCursor account (uses your own provider keys)
Credential: Cursor account (uses your own provider keys). Those keys are used directly by Cursor — OpenDesign does not proxy them. No quota or price is promised here.
System and VersionsDesktop app or source
Desktop builds appear on the download page. Node.js and pnpm requirements belong to running OpenDesign from source, not to installing the desktop package. A minimum Cursor version is not verified on this page.
Connection CheckThe success signal
Use the connection steps your installed version displays, then send one small task through Cursor. Check that Cursor handled it and that the resulting file opens. Downloading alone does not prove a working connection.
Start with the desktop app
Cursor Setup in Three Steps
Install the desktop app, finish the Cursor connection steps for the version you have, then verify with one small result. Following this path does not require building OpenDesign from source.
- 1
Download the OpenDesign Desktop App
Pick the desktop package that matches your machine, install it, and launch OpenDesign.
Download OpenDesignCHECKPOINTOpenDesign launches. If it is already installed, continue to the next step — do not download it again. - 2
Prepare Your Cursor Connection
Carry out the Cursor setup shown by your installed version. Cursor uses your provider keys directly; OpenDesign does not proxy them.
# .cursor/rules/design.mdc --- description: Project design conventions alwaysApply: true --- - Reuse existing design-system tokens and components; never hardcode hex or spacing. - At most two typefaces and one accent color. - Brand-first hierarchy; restrained motion. No hero cards, no oversized rounded corners. - Build responsive by default; verify desktop and mobile in the preview before finishing.Taken from the Cursor setup notes in the published guide; the current command should be checked against vendor documentation.
CHECKPOINTMake sure the selected agent is Cursor and the account is the intended one. If Cursor is unavailable, review compatibility before attempting a larger task. - 3
Run One Small Cursor Task
Choose a compact first request, one you can judge through the full loop, including a single revision.
Starter briefBuild a settings screen with a profile form and a save confirmation. Follow my design rules. Check it at desktop and mobile widths.
CHECKPOINTOpen the rendered file, exercise the save state, and ask for one specific change. A generated artifact starts the review; it does not finish it.
For a source-based OpenDesign install, use the technical quickstart instead.
The Cursor design workflow
Cursor’s Design Loop: Five Steps From Brief to Reviewed File
Follow the pricing page from a short brief through Cursor’s Agent mode and in-editor preview to a reviewed file. Each step names your input, Cursor’s part, OpenDesign’s contribution, and the check you perform.
- 1
Design Brief
Keep it plain and short—roughly three to six lines. Say who the screen serves, what it must accomplish, and which platforms it targets.
- YouDraft the brief, and include a reference screenshot when one exists.
- CursorReads the brief and the project’s instruction file; asks when something is ambiguous.
- OpenDesignSupplies the project, the chat surface for the prompt, and the skill matched to the artifact type.
- CheckCheck that the brief carries acceptance criteria. Settling them before generation costs less than fixing them afterward.
- 2
Design Constraints
Bring a design system and a few firm constraints. That context is what keeps the output from drifting into a generic look.
- YouChoose the design system, then name the breakpoints and any components that must be reused.
- CursorBefore writing any markup, Cursor reads the DESIGN.md tokens and posture rules into context.
- OpenDesignOpenDesign carries the design-system library and binds your selection into the skill template.
- CheckVerify the tokens against your brand: a single accent, correct fonts, correct radius.
- 3
Generate the Interface
Cursor produces one self-contained HTML file—layout, styles, interactions, and stable hooks included.
- YouHold, or reply if Cursor asks a clarifying question. There is nothing to configure here.
- CursorCursor plans the sections, writes the HTML, CSS, and JavaScript, runs the file, and corrects what fails.
- OpenDesignOpenDesign stores the artifact in the project folder and indexes it so the preview can open it.
- CheckNot yet. Wait until the file renders, then judge the result rather than the source.
- 4
Preview
OpenDesign renders the file at the widths you specified. The design gets judged here, in the preview.
- YouChange viewport widths, exercise each interaction, and comment directly on elements.
- CursorCursor reads the comments you left on the preview and prepares the next revision.
- OpenDesignOpenDesign renders the preview and exposes
data-od-idtargets for comments and edits. - CheckCheck hierarchy, contrast, overflow at 390px, focus states, and whether the accent stays sparing.
- 5
Revise and Verify
Point at elements in the preview to request changes. Each revision lands as a new file—silent overwrites do not happen.
- YouConvert your comments into requests, and decide when the task is finished.
- CursorCursor applies the changes in place and runs the file again.
- OpenDesignOpenDesign keeps versions side by side and exports an image or the HTML when you finish.
- CheckReview only the changed area first, then the full page once at every breakpoint.
Resources
Cursor Design Resources
Skills Browse skills Design systems Browse systems Templates Browse templates
Design Skills
Artifact types Cursor can produce in OpenDesign, mapped one skill per type.
Design Systems
The brand tokens and components to bind before Cursor begins generating.
Templates
Entry points for decks, landing pages and product screens.
Limitations
Cursor Limits, Manual Checks, and Fallbacks
- ScopeThis page treats Cursor as an agent connected through OpenDesign; it does not cover every Cursor feature.
- Usage LimitsCost and usage limits track the credential in play (Cursor account (uses your own provider keys)). No free-quota claim is made here.
- NetworkKeeping project files local does not make inference offline. Before sending sensitive inputs, inspect the agent’s provider settings and data policies.
- Output Is HTMLCursor returns HTML artifacts rather than editable vector design files. Any Figma round-trip runs through Cursor’s own Figma integration.
- Manual ReviewYou are the reviewer—in the preview—for accessibility, real content, brand fit and interaction correctness. An agent self-check counts only as a first pass.
- FallbackWhen Cursor is unavailable or a task fails, consult the connection instructions and authentication for the version you installed. Before changing configuration, keep the error and the last working artifact.
FAQ
Common Questions About Cursor and OpenDesign
Can Cursor Deliver Real Design Work?
Yes — with a design skill, a design system, and real reference images in context, Cursor produces production-quality, responsive UI, and its in-editor preview lets you verify and refine it visually. Without that context it tends to default to a generic look, which is the gap OpenDesign fills.
Is This an Official Cursor Product?
No. OpenDesign is an independent open-source project that integrates Cursor as an agent. It complements Cursor with a local-first, open skill and design-system library.
Do I Need a Cursor Subscription to Design With Cursor?
You can use a Cursor account / subscription or bring your own model keys (BYOK). OpenDesign never proxies your credentials either way — they are used directly by your agent.
Cursor vs. Claude Code for Frontend Design?
Both are strong. Claude Code is known for specific, codebase-aware design decisions; Cursor’s edge is its tight build-and-see loop with a live preview inside the editor. Many teams use both — OpenDesign lets you switch agents without changing your design workflow.
How Does Cursor Connect to Figma?
Add the official Figma MCP server in Cursor, then paste a Figma frame link into the chat and ask Cursor to implement it. The server exposes real components, variables, and layout data so the generated code matches the source design.
Cursor’s Foundation: AI-First VS Code Fork
Cursor is an AI-first code editor built by Anysphere. It is a fork of VS Code, so it keeps the familiar editor, extensions, and keybindings, but rebuilds the workflow around an AI agent that can read your whole project, edit multiple files, run commands, and iterate with you in the loop.
For design work the important surfaces are Agent mode (you describe an outcome and Cursor plans and edits across files), inline edits and Tab completions for fast tweaks, an in-editor preview / browser so you can see the running UI without leaving the window, and MCP support that lets it pull in external context like a live Figma file.
Project rules: Cursor reads project instruction files — versioned `.mdc` rules under `.cursor/rules`, and a plain `AGENTS.md` — so you can encode your design conventions where the agent reads them every run.
Models: Cursor is model-flexible: it ships with frontier models through your subscription and also supports bringing your own model keys, so you choose the engine behind the same editor workflow.
MCP: It speaks the Model Context Protocol, so external servers — most relevantly the Figma MCP server — become first-class context for the agent.
Credential: Cursor account / subscription (Hobby / Pro / Business) or your own model keys (BYOK)
Form: AI-first code editor (VS Code fork) with an in-editor agent and preview
Vendor: Anysphere
For design work the important surfaces are Agent mode (you describe an outcome and Cursor plans and edits across files), inline edits and Tab completions for fast tweaks, an in-editor preview / browser so you can see the running UI without leaving the window, and MCP support that lets it pull in external context like a live Figma file.
Project rules: Cursor reads project instruction files — versioned `.mdc` rules under `.cursor/rules`, and a plain `AGENTS.md` — so you can encode your design conventions where the agent reads them every run.
Models: Cursor is model-flexible: it ships with frontier models through your subscription and also supports bringing your own model keys, so you choose the engine behind the same editor workflow.
MCP: It speaks the Model Context Protocol, so external servers — most relevantly the Figma MCP server — become first-class context for the agent.
Credential: Cursor account / subscription (Hobby / Pro / Business) or your own model keys (BYOK)
Form: AI-first code editor (VS Code fork) with an in-editor agent and preview
Vendor: Anysphere
Cursor’s Design Edge: Tight Build-and-See Loop
Cursor’s design edge is not a single feature — it is the tightness of the build-and-see loop. Three things make it feel like a design tool rather than a generic code generator.
A tight iterate-and-watch loop: You prompt, Cursor edits across files, and the in-editor preview renders the result immediately — so you adjust spacing, hierarchy, and motion in seconds instead of round-tripping through a separate terminal and browser.
Direct visual editing: Beyond chat, Cursor lets you select elements in the preview and nudge styles, so small visual corrections feel like design edits rather than code archaeology.
Project rules and MCP context: With `.cursor/rules` (or `AGENTS.md`) and the Figma MCP server, the agent works against your tokens, components, and real design specs instead of guessing.
Taste comes from three inputs you provide: a design system, a skill, and real reference images.
The lesson is the same one every agent teaches: Cursor does not have taste by default. It produces good design when you give it constraints — a design system, an aesthetic skill, and concrete references. OpenDesign packages exactly those inputs, which is why the two fit together (more below).
A tight iterate-and-watch loop: You prompt, Cursor edits across files, and the in-editor preview renders the result immediately — so you adjust spacing, hierarchy, and motion in seconds instead of round-tripping through a separate terminal and browser.
Direct visual editing: Beyond chat, Cursor lets you select elements in the preview and nudge styles, so small visual corrections feel like design edits rather than code archaeology.
Project rules and MCP context: With `.cursor/rules` (or `AGENTS.md`) and the Figma MCP server, the agent works against your tokens, components, and real design specs instead of guessing.
Taste comes from three inputs you provide: a design system, a skill, and real reference images.
The lesson is the same one every agent teaches: Cursor does not have taste by default. It produces good design when you give it constraints — a design system, an aesthetic skill, and concrete references. OpenDesign packages exactly those inputs, which is why the two fit together (more below).
Setting Up Cursor for Design From Zero
Install Cursor from cursor.com and sign in with your Cursor account, or configure your own model keys (BYOK) in Settings.
Open your project and pick a model in the chat / Agent panel.
Add project rules: create `.cursor/rules/*.mdc` for structured, glob-scoped conventions, or a plain `AGENTS.md` for simple, readable instructions.
Connect the Figma MCP server (optional) so the agent can read live design context.
Run your dev server and use the in-editor preview to see and verify the UI as you iterate.
The setup sequence: install → authenticate → configure project rules → add a skill → enable preview verification.
A minimal project-rules file makes the agent design to a brand instead of defaulting to a generic look. Put it where Cursor reads it every run:
Encode your design rules: Put your tokens, primitives, and conventions in `.cursor/rules` or `AGENTS.md` and point Cursor at them, so output matches a brand instead of defaulting to a generic look.
Keep prompts small: Cursor’s tight loop rewards focused asks — iterate one component or state at a time and watch the preview between passes.
Use the current setup section for commands and version-specific details, which may change.
Historical command example from the previous guide; verify current syntax in the linked vendor documentation.
Open your project and pick a model in the chat / Agent panel.
Add project rules: create `.cursor/rules/*.mdc` for structured, glob-scoped conventions, or a plain `AGENTS.md` for simple, readable instructions.
Connect the Figma MCP server (optional) so the agent can read live design context.
Run your dev server and use the in-editor preview to see and verify the UI as you iterate.
The setup sequence: install → authenticate → configure project rules → add a skill → enable preview verification.
A minimal project-rules file makes the agent design to a brand instead of defaulting to a generic look. Put it where Cursor reads it every run:
Encode your design rules: Put your tokens, primitives, and conventions in `.cursor/rules` or `AGENTS.md` and point Cursor at them, so output matches a brand instead of defaulting to a generic look.
Keep prompts small: Cursor’s tight loop rewards focused asks — iterate one component or state at a time and watch the preview between passes.
Use the current setup section for commands and version-specific details, which may change.
# .cursor/rules/design.mdc
---
description: Project design conventions
alwaysApply: true
---
- Reuse existing design-system tokens and components; never hardcode hex or spacing.
- At most two typefaces and one accent color.
- Brand-first hierarchy; restrained motion. No hero cards, no oversized rounded corners.
- Build responsive by default; verify desktop and mobile in the preview before finishing.Historical command example from the previous guide; verify current syntax in the linked vendor documentation.
The preview-to-UI workflow
The highest-leverage design loop with Cursor is turning a reference into working, responsive UI and iterating in the editor until it matches — watching the live preview the whole time instead of guessing.
Start from the clearest visual references you have — and include multiple states (desktop and mobile, hover, empty, loading), not just one hero shot.
Be specific in the prompt; vague prompts produce generic UI.
Prepare a design system and tell Cursor where the tokens and canonical primitives live.
Keep the in-editor preview open and your dev server running so each edit renders immediately at the breakpoints you care about.
Iterate by comparing the rendered UI back to the references — and use direct element selection in the preview for small visual corrections.
Feed references by attaching an image to the chat, then prompt with concrete constraints:
Commit good iterations and revert bad ones (telling Cursor when you revert) so each pass builds on a clean base — the same discipline that keeps any agent loop from drifting.
Historical command example from the previous guide; verify current syntax in the linked vendor documentation.
Start from the clearest visual references you have — and include multiple states (desktop and mobile, hover, empty, loading), not just one hero shot.
Be specific in the prompt; vague prompts produce generic UI.
Prepare a design system and tell Cursor where the tokens and canonical primitives live.
Keep the in-editor preview open and your dev server running so each edit renders immediately at the breakpoints you care about.
Iterate by comparing the rendered UI back to the references — and use direct element selection in the preview for small visual corrections.
Feed references by attaching an image to the chat, then prompt with concrete constraints:
Commit good iterations and revert bad ones (telling Cursor when you revert) so each pass builds on a clean base — the same discipline that keeps any agent loop from drifting.
Implement this design in React + Vite + Tailwind + TypeScript.
Reuse my existing design-system components and tokens.
Match spacing, layout, and hierarchy; make it responsive.
Keep the preview open — verify desktop and mobile match the
references and iterate until they do.Historical command example from the previous guide; verify current syntax in the linked vendor documentation.
Cursor + Figma: design ↔ code over MCP
Cursor connects to Figma through the official Figma MCP server, which gives the agent structured access to a live Figma file instead of a flat screenshot. That removes the guesswork from handoff.
Design → Code: Copy a frame’s link in Figma, paste it into Cursor, and ask it to implement the design. The MCP server exposes real design context — components, variables, layout data, tokens — so the generated code matches the source instead of approximating it.
Stay aligned: With design tokens, styles, and components used consistently in Figma (and Code Connect where available), Cursor’s output stays mapped to your real design system rather than re-inventing primitives.
Set the remote Figma MCP server up once and it is available to Cursor as first-class context. Because MCP is an open standard, the same server is reusable across Cursor, Claude Code, Codex, and VS Code — exactly the kind of portable, multi-agent capability OpenDesign is built to orchestrate.
Design → Code: Copy a frame’s link in Figma, paste it into Cursor, and ask it to implement the design. The MCP server exposes real design context — components, variables, layout data, tokens — so the generated code matches the source instead of approximating it.
Stay aligned: With design tokens, styles, and components used consistently in Figma (and Code Connect where available), Cursor’s output stays mapped to your real design system rather than re-inventing primitives.
Set the remote Figma MCP server up once and it is available to Cursor as first-class context. Because MCP is an open standard, the same server is reusable across Cursor, Claude Code, Codex, and VS Code — exactly the kind of portable, multi-agent capability OpenDesign is built to orchestrate.
Cursor vs Codex vs Claude Code for design
There is no single winner for design work — each agent has a different strength, and experienced teams stack them. A fair summary:
Cursor — Visual build-and-see loop with live in-editor preview and direct element editing — Tight iterate-and-watch UI work inside an IDE
Codex — Strong visual polish with a frontend skill; image understanding and sandboxed runs — Delegated async builds and portable AGENTS.md rules
Claude Code — Specific design decisions (hex, spacing, type) and codebase-aware UX — Frontend reasoning and large-context refactors
The recurring community verdict is that taste comes from humans: all three default to a generic aesthetic without skills, references, and constraints. That is the real problem to solve — and it is design-tool-shaped, not model-shaped.
Agent — Design strength — Best for
Cursor — Visual build-and-see loop with live in-editor preview and direct element editing — Tight iterate-and-watch UI work inside an IDE
Codex — Strong visual polish with a frontend skill; image understanding and sandboxed runs — Delegated async builds and portable AGENTS.md rules
Claude Code — Specific design decisions (hex, spacing, type) and codebase-aware UX — Frontend reasoning and large-context refactors
The recurring community verdict is that taste comes from humans: all three default to a generic aesthetic without skills, references, and constraints. That is the real problem to solve — and it is design-tool-shaped, not model-shaped.
Agent — Design strength — Best for
Avoiding the “AI Slop” Look: Pitfalls and Fixes
The most common complaint about Cursor-generated design is that it looks generic — soft gradients, floating panels, oversized rounded corners, dramatic shadows, an Inter-and-purple vibe that “screams an AI made this.” Other reported issues include layouts that break on mobile and instructions leaking into UI copy.
Add a design skill: A curated aesthetic skill forces Cursor to commit to a real direction instead of the default look.
Use the preview to verify: Render and self-check across breakpoints in the in-editor preview so layouts do not silently break on mobile.
Supply tokens and references: Real design tokens and reference screenshots are the single biggest lever on output quality.
Encode rules in `.cursor/rules`: Put “no hero cards, max two typefaces, brand-first hierarchy” style rules where the agent reads them every run.
Notice that every mitigation is about giving the agent a curated design context. Maintaining that context by hand, per project, is the toil OpenDesign removes.
Add a design skill: A curated aesthetic skill forces Cursor to commit to a real direction instead of the default look.
Use the preview to verify: Render and self-check across breakpoints in the in-editor preview so layouts do not silently break on mobile.
Supply tokens and references: Real design tokens and reference screenshots are the single biggest lever on output quality.
Encode rules in `.cursor/rules`: Put “no hero cards, max two typefaces, brand-first hierarchy” style rules where the agent reads them every run.
Notice that every mitigation is about giving the agent a curated design context. Maintaining that context by hand, per project, is the toil OpenDesign removes.
Cursor Inside OpenDesign: The Design Layer
OpenDesign is the open-source design layer the workflow above keeps asking for. It treats Cursor as a first-party adapter and wraps it in a curated skill and design-system library, a structured render pipeline, and a local desktop UI — so the design context that makes Cursor good is there from the first run, not assembled by hand each time.
Authenticate with your Cursor account or your own model keys (BYOK) — credentials stay on your machine and are never proxied through us.
Pick a design system and a skill, then generate decks, prototypes, and landing pages with consistent taste.
Every artifact and DESIGN.md file lives in your own repo, not a hosted cloud.
Same Cursor agent, same key — plus a real, portable, open-source design workflow around it. It is local-first and Apache-2.0, so nothing about your work or your credentials leaves your machine.
Install OpenDesign and select Cursor as your agent.
Authenticate with your Cursor account or your own model keys (BYOK) — credentials stay on your machine and are never proxied through us.
Pick a design system and a skill, then generate decks, prototypes, and landing pages with consistent taste.
Every artifact and DESIGN.md file lives in your own repo, not a hosted cloud.
Same Cursor agent, same key — plus a real, portable, open-source design workflow around it. It is local-first and Apache-2.0, so nothing about your work or your credentials leaves your machine.
Install OpenDesign and select Cursor as your agent.
Is OpenDesign affiliated with Cursor?
No. Cursor is a product of Anysphere; OpenDesign is an independent open-source project that integrates it as a first-party adapter.
